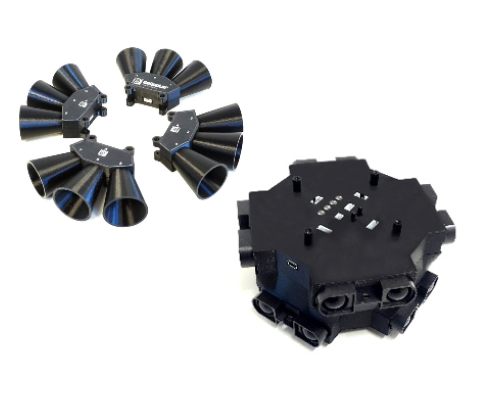

CAA UI
- hardware
- 8 infrared sensors, 12 ultrasound sensors, center unit with IMU and MCU
- measuring range
- 60 cm - 500 cm
- framerate
- 10 Hz
- distance resolution
- 1 cm
- weight
- approx. 400 g
- dimensions
- see single modules
Custom Solutions & Drone Technology

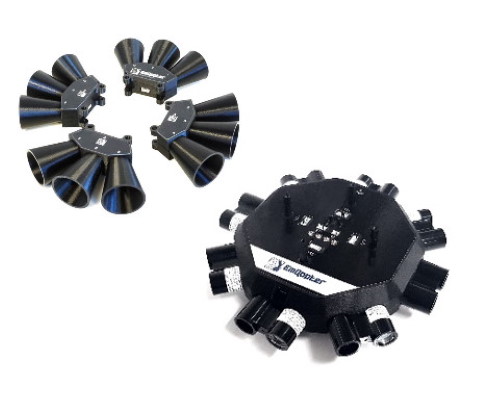

Modules for collision avoidance using complementary sensors
Technical data

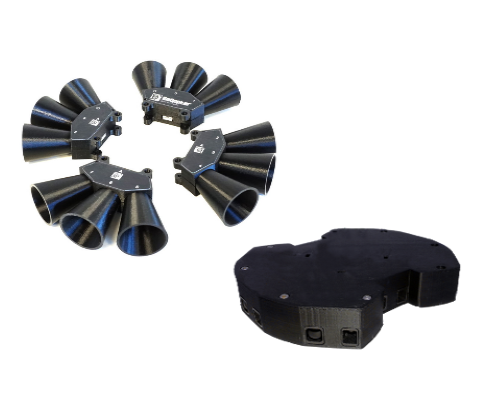

CAA UI mini
- hardware
- 8 infrared sensors, 12 ultrasound sensors, center unit with IMU and MCU
- measuring range
- 10 cm - 150 cm
- framerate
- 10 Hz
- distance resolution
- 1 cm
- weight
- approx. 400 g
- dimensions
- see single modules

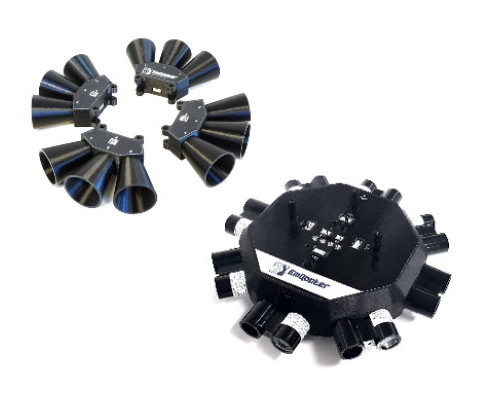

CAA LU
- hardware
- 8 point laser, 12 ultrasound sensors, center unit with IMU and MCU
- measuring range
- 20 cm - 4000 cm
- framerate
- 10 Hz
- distance resolution
- 1 cm
- weight
- approx. 400 g
- dimensions
- see single modules
Complementary sensors combine the advantages of various sensor technologies and reduce the weaknesses of single sensor technologies. Whereas ultrasonic sensors fail in detecting sound absorbing surfaces, they are reliable in detecting transparent obstacles. Sensor technologies based on light pulses such as infrared and lidar sensors have a contrary behaviour so that those technologies do complement each other perfectly.
Errors and changes excepted. All specifications are non-binding.
