A gripper arm for work at height
A robot, working for us in lofty heights is no longer science fiction. Forget about expensive lifting platforms. As flying multicopter equipped with gripper, the Quanipulator is exactly what you may understand as THE universal tool of the future.

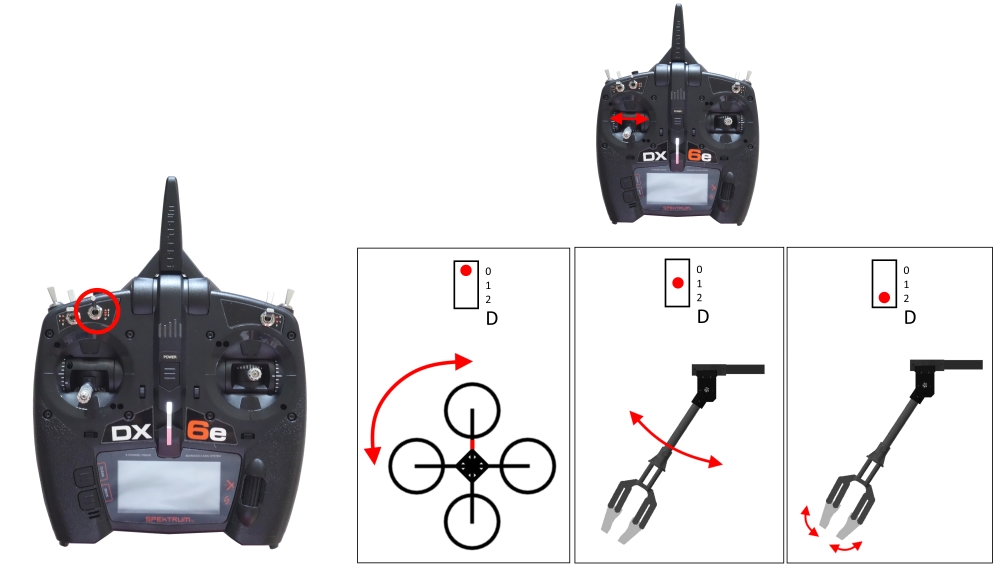

Like a common drone, the Quanipulator is steerable in 6 degrees of freedom using a remote control. The gripper can be controlled over the same RC. It can be panned upwards and downwards and of course be opened and closed. With only a little flight experience you will manage pinpoint transport and dropping of objects right now.
The Quanipulator in detail
In analogy to our Quadrotor Control System the Quanipulator is freely programmable within our software framework. Additionally it brings numerous interfaces to connect and integrate sensors and functional modules. Its range of functions is being constantly extended. Thus you can fit the Quanipulator perfectly to your needs and imaginations.
Scope of delivery:
For an easy start, all required software tools and drivers are included.
- Quanipulator quadrotor
- Integrated 2DOF gripper
- High-performance motors
- 3000 mAh 4S Lipo Battery
- Remote control
- Propeller guard
- 4 + 4 12“ propellers
- Programming interface
- Com.: SPI, I2C, UART
- Example software
- Software library
- Documentation
- User manual
Properties:
- Navigation
- manual / semi-autonomous
- Power
- approx. 1200 W
- Dimensions
- 83 x 83 x 42 cm
- Tare weight (without battery)
- approx. 1200 g
- Load capacity
- approx. 200g
Let's talk about your project
Whether transport route, teaching system or sensor technology – we advise you personally and find the right solution.
